Specification：
2",Ф38, chuck outer diameter 50.5mm;
stainless steel SUS304
It is mainly used in ideal supporting products for food and beverage, dairy products, medical treatment, beer brewing, water
supply, pharmaceutical, biological engineering and fine chemical engineering projects
Stainless steel non-stagnant ball valve
| Einheitspreis: | 19.99~59.99 USD |
|---|---|
| Minimum der Bestellmenge: | 10 Piece/Pieces |
| Verpakung: | exported standard packing sanitary valves and fittings |
|---|---|
| Transport: | Ocean |
Produktbeschreibung
Product Description
DESCRIPTION

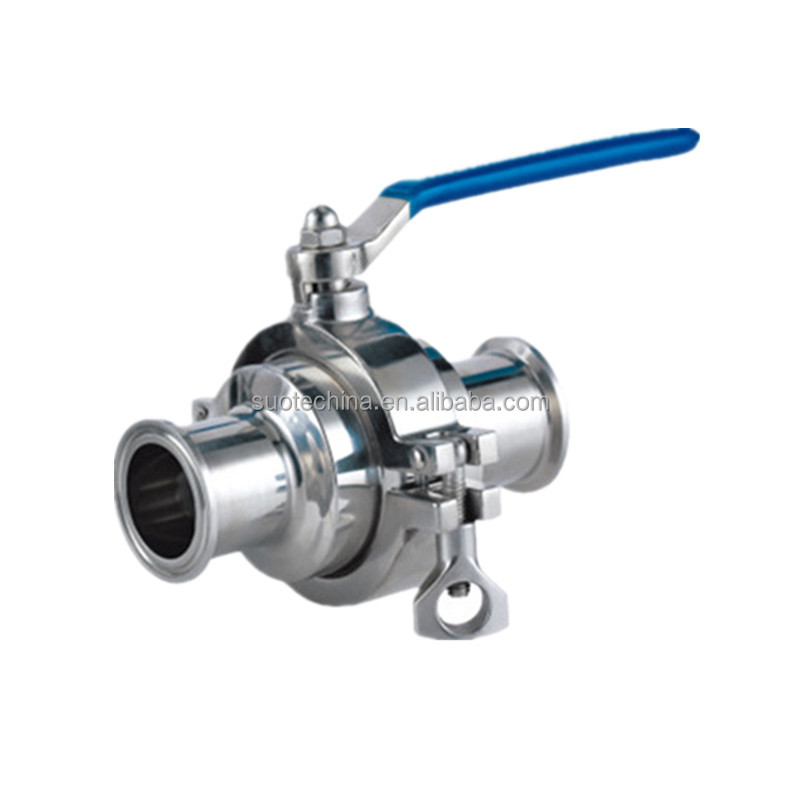

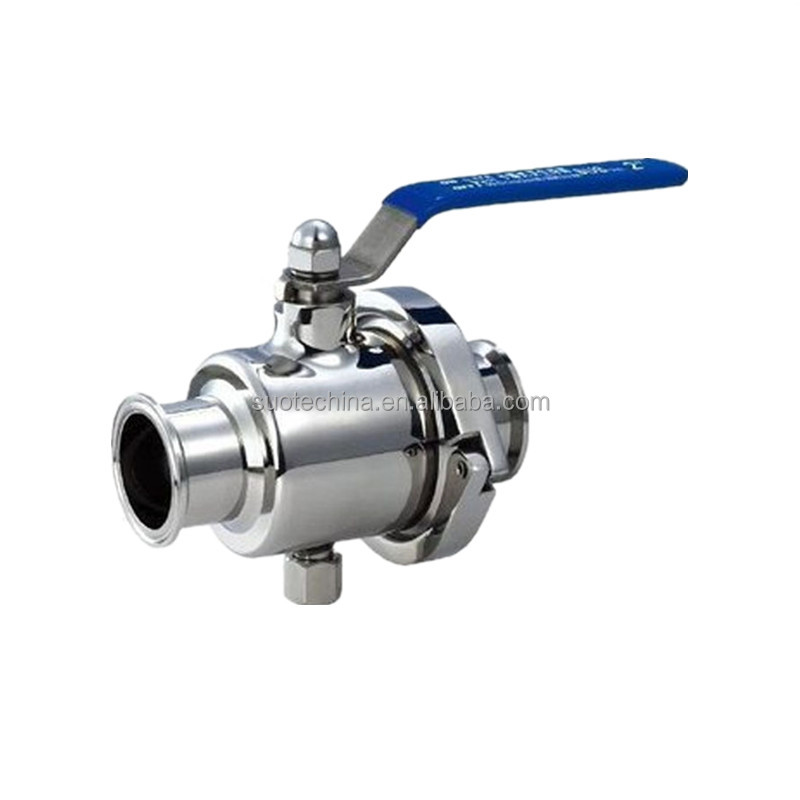

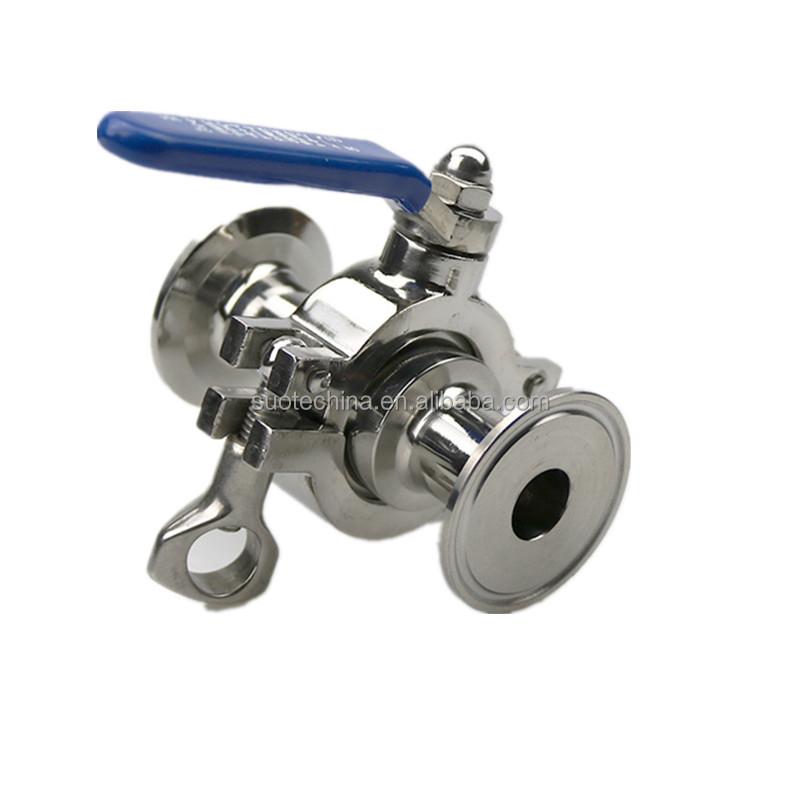

Straight-through ball valve, non-stagnant ball valve, stainless steel ball valve, tri-clamp connection ball valve with blue locking handle.
Suote carries an extensive supply of commercial brewery,winery and food processing equipment.From basic supplies like fittings and valves,hose and food-grade washdown equipment,to bottling and packaging equipment for commercial use. full port ball valve with locking device is not only own with the functions of opening quickly, easy to maintain, good sealing but also safety fire-safe and anti-static designs. Our company designs various kinds of ball valves for one-piece, two-piece, three-piece, thread end, flange type, full port. Mini ball valve is also available. The selection of ball valve material includes stainless steel 304 and stainless steel 316. Chose the suitable ball valve to use in piping system.
Material
There are 2 types of material you can choose,stainless steel 304 and stainless steel 316 full port ball valve are available in our store.
Serviceable ball valve
This stainless steel ball valve can be taken apart via threads,female npt ports.It can be easier serviced and cleaned.
Connect Type
This full port ball valve is tri-clamp connection.
Seats & Seals
The material of seal is PTFE, it offers excellent corrosion resistance for most applications.
Main features
* ★【Long Life】Due to PTFE has a good self-lubrication, and the valve body, ball, valve stem friction and wear, so greatly increased the life of the ball valve.
* ★【Good Sealing Performance】 The sealing performance is good, most of the ball valve seats are made of PTFE and other elastic materials, the general sealability is easy to ensure that all widely used.
* ★【Small Fluid Resistance】The fluid resistance is small, whether it is shrinkage or the full-ball valve flow resistance coefficient is the smallest of all valves.
* ★【Reliable】High reliability, ball and valve seat will not be bruised, the valve rod will not fly out of rapid wear, fire, anti-static function.
* ★【Application】It is mainly used in ideal supporting products for food and beverage, dairy products, medical treatment, beer brewing, water supply, pharmaceutical, biological engineering and fine chemical engineering projects
* ★【Good Sealing Performance】 The sealing performance is good, most of the ball valve seats are made of PTFE and other elastic materials, the general sealability is easy to ensure that all widely used.
* ★【Small Fluid Resistance】The fluid resistance is small, whether it is shrinkage or the full-ball valve flow resistance coefficient is the smallest of all valves.
* ★【Reliable】High reliability, ball and valve seat will not be bruised, the valve rod will not fly out of rapid wear, fire, anti-static function.
* ★【Application】It is mainly used in ideal supporting products for food and beverage, dairy products, medical treatment, beer brewing, water supply, pharmaceutical, biological engineering and fine chemical engineering projects
|
Component
|
Description
|
Description
|
|
1
|
Body
|
TP316 Stainless Steel
|
|
2
|
Cap
|
TP316 Stainless Steel
|
|
3
|
Ball
|
TP316 Stainless Steel
|
|
4
|
Ball
|
PTFE
|
|
5
|
Seal
|
PTFE
|
|
6
|
Thrust Washer
|
PTFE
|
|
7
|
Stem Packing
|
PTFE
|
|
8
|
Gland Nut
|
TP304 Stainless Steel
|
|
9
|
Spring Washer
|
TP304 Stainless Steel
|
|
10
|
Stem Nut
|
TP304 Stainless Steel
|
|
11
|
Stem
|
TP304 Stainless Steel
|
|
12
|
Spring Washer
|
TP304 Stainless Steel
|
|
13
|
Nut
|
TP304 Stainless Steel
|
|
14
|
Bolt
|
TP304 Stainless Steel
|
|
15
|
Handle
|
TP304 Stainless Steel
|
|
16
|
Handle Sleeve
|
PVC
|
|
17
|
Locking Device
|
TP304 Stainless Steel
|
|
Sanitary Size
|
OD of Flange End
|
ID of Tube
|
OD of Tube
|
|
1/2″
|
0.992
|
0.370
|
0.500
|
|
3/4″
|
0.992
|
0.620
|
0.750
|
|
1″
|
1.984
|
0.870
|
1.000
|
|
1 1/2″
|
1.984
|
1.370
|
1.500
|
|
2″
|
2.516
|
1.870
|
2.000
|
|
2 1/2″
|
3.047
|
2.370
|
2.500
|
|
3″
|
3.579
|
2.870
|
3.000
|
|
4″
|
4.682
|
3.834
|
4.000
|
|
6″
|
6.562
|
5.782
|
6.000
|
|
8″
|
8.602
|
7.782
|
8.000
|
|
10″
|
10.570
|
9.782
|
10.000
|
|
12″
|
12.570
|
11.760
|
12.000
|
Stainless steel ball valve Non-stagnant ball valve Tri-Clamp connection sanitary straight-through handle valve.
With more than 20 years of technological in this area .Suote pharmaceutical is your trusted partner !
Details Images
FAQ
Q: Are these valves certified for drinking water applications?
A: These valves are suitable for use with water. They are manufactured from 316L Stainless Steel which is corrosion resistant. They are not, however, certified by any governing body as being suitable for water applications.
Q: Is this valve suitable for gasoline service?
A:The one-piece threaded ball valve is not rated to handle gasoline material.
Q: Is there a CAD file available for this valve? I would like to integrate it into my assembly and a pre-made component would be
helpful.
helpful.
A: I'm sorry but we do not have any associated CAD files for our One-Piece Threaded Ball Valves available.
Q: Are these valves rated for 450psi nitrogen at 100 degrees F?
A: hese valves have an operating working pressure of 1000 PSI with a temperature range of -4°F to 392°F.
Q: Are these valves full port?
A: These valves can open up to allow 100% material flow-through rates.
A: These valves can open up to allow 100% material flow-through rates.
